Oase AquaMax Gravity Eco

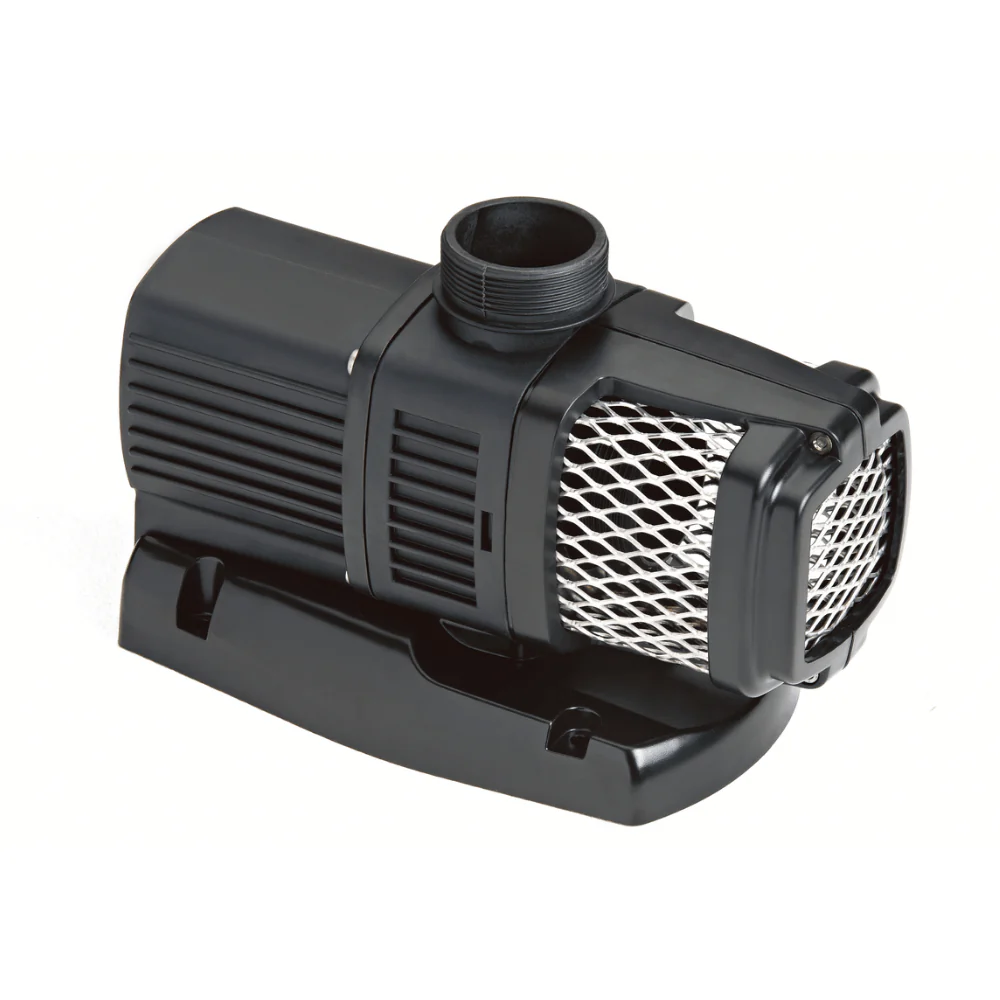

Product image 1

Oase AquaMax Gravity Eco

Oase AquaMax Gravity Eco

  • Energy-efficient filter pump with strong and reliable delivery capacity for large bodies of water with intensive use
  • Coarse debris displacement of particles up to 6 mm in size
  • High stability thanks to the removable mounting base
  • Can be set up underwater & dry installed
  • Winterproof: the pump will not be damaged at temperatures as low as -20° C
  • Included in the scope of delivery: adapter set for hose (2” / DA 63) and pipe connection (DN 75  /  DN 110)
  • »Environmental Function Control« (EFC by OASE) protects against dry run and blocking
  • Suitable for use on swim ponds and bathing ponds (used in an exterior pump chamber)
  • Handles coarse debris particles up to 6 mm in size

    10000


    Dimensions (L x W x H) mm 272 x 142 x 182
    Rated voltage 220 - 240 V / 50 Hz
    Power consumption W 65
    Power cable length m 10.00
    Net weight kg 4.20
    Guarantee (+ request guarantee) Years 3 + 2
    Max. flow rate l/min 166
    Max. flow rate l/h 10000
    Max. head height, metres m 1.30
    Pressure-side connection mm 50
    Pressure-side connection 2"
    Suction-side connection mm 50
    Suction-side connection 2"
    Hose connection mm 50
    Hose connection 2", DA 63, DA 75, DA 110
    Filter intake surface cm² 200
    Max. coarse debris displacement mm 6
    Electronic adjustment No
    Setup type Can be set up underwater & dry installed


    15000


    Dimensions (L x W x H) mm 272 x 142 x 182
    Rated voltage 220 - 240 V / 50 Hz
    Power consumption W 85
    Power cable length m 10.00
    Net weight kg 4.50
    Guarantee (+ request guarantee) Years 3 + 2
    Max. flow rate l/min 250
    Max. flow rate l/h 15000
    Max. head height, metres m 1.80
    Pressure-side connection mm 50
    Pressure-side connection 2"
    Suction-side connection mm 50
    Suction-side connection 2"
    Hose connection mm 50
    Hose connection 2", DA 63, DA 75, DA 110
    Filter intake surface cm² 200
    Max. coarse debris displacement mm 6
    Electronic adjustment No
    Setup type Can be set up underwater & dry installed


    20000


    Dimensions (L x W x H) mm 272 x 142 x 182
    Rated voltage 220 - 240 V / 50 Hz
    Power consumption W 120
    Power cable length m 10.00
    Net weight kg 4.50
    Guarantee (+ request guarantee) Years 3 + 2
    Max. flow rate l/min 300
    Max. flow rate l/h 18000
    Max. head height, metres m 2.20
    Pressure-side connection mm 50
    Pressure-side connection 2"
    Suction-side connection mm 50
    Suction-side connection 2"
    Hose connection mm 50
    Hose connection 2", DA 63, DA 75, DA 110
    Filter intake surface cm² 200
    Max. coarse debris displacement mm 6
    Electronic adjustment No
    Setup type Can be set up underwater & dry installed

Select Size
From $310.75

Original: $1,035.83

-70%
Oase AquaMax Gravity Eco—

$1,035.83

$310.75

Product Information

Shipping & Returns

Description

  • Energy-efficient filter pump with strong and reliable delivery capacity for large bodies of water with intensive use
  • Coarse debris displacement of particles up to 6 mm in size
  • High stability thanks to the removable mounting base
  • Can be set up underwater & dry installed
  • Winterproof: the pump will not be damaged at temperatures as low as -20° C
  • Included in the scope of delivery: adapter set for hose (2” / DA 63) and pipe connection (DN 75  /  DN 110)
  • »Environmental Function Control« (EFC by OASE) protects against dry run and blocking
  • Suitable for use on swim ponds and bathing ponds (used in an exterior pump chamber)
  • Handles coarse debris particles up to 6 mm in size

    10000


    Dimensions (L x W x H) mm 272 x 142 x 182
    Rated voltage 220 - 240 V / 50 Hz
    Power consumption W 65
    Power cable length m 10.00
    Net weight kg 4.20
    Guarantee (+ request guarantee) Years 3 + 2
    Max. flow rate l/min 166
    Max. flow rate l/h 10000
    Max. head height, metres m 1.30
    Pressure-side connection mm 50
    Pressure-side connection 2"
    Suction-side connection mm 50
    Suction-side connection 2"
    Hose connection mm 50
    Hose connection 2", DA 63, DA 75, DA 110
    Filter intake surface cm² 200
    Max. coarse debris displacement mm 6
    Electronic adjustment No
    Setup type Can be set up underwater & dry installed


    15000


    Dimensions (L x W x H) mm 272 x 142 x 182
    Rated voltage 220 - 240 V / 50 Hz
    Power consumption W 85
    Power cable length m 10.00
    Net weight kg 4.50
    Guarantee (+ request guarantee) Years 3 + 2
    Max. flow rate l/min 250
    Max. flow rate l/h 15000
    Max. head height, metres m 1.80
    Pressure-side connection mm 50
    Pressure-side connection 2"
    Suction-side connection mm 50
    Suction-side connection 2"
    Hose connection mm 50
    Hose connection 2", DA 63, DA 75, DA 110
    Filter intake surface cm² 200
    Max. coarse debris displacement mm 6
    Electronic adjustment No
    Setup type Can be set up underwater & dry installed


    20000


    Dimensions (L x W x H) mm 272 x 142 x 182
    Rated voltage 220 - 240 V / 50 Hz
    Power consumption W 120
    Power cable length m 10.00
    Net weight kg 4.50
    Guarantee (+ request guarantee) Years 3 + 2
    Max. flow rate l/min 300
    Max. flow rate l/h 18000
    Max. head height, metres m 2.20
    Pressure-side connection mm 50
    Pressure-side connection 2"
    Suction-side connection mm 50
    Suction-side connection 2"
    Hose connection mm 50
    Hose connection 2", DA 63, DA 75, DA 110
    Filter intake surface cm² 200
    Max. coarse debris displacement mm 6
    Electronic adjustment No
    Setup type Can be set up underwater & dry installed
