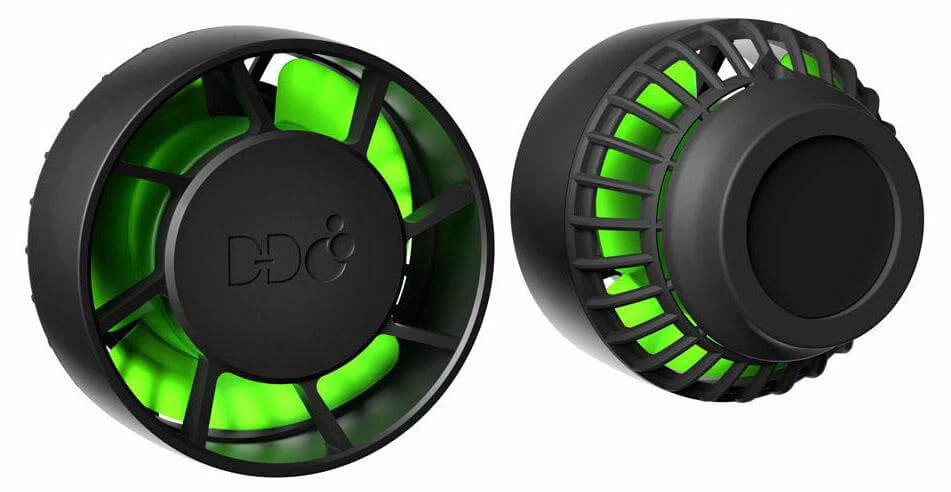

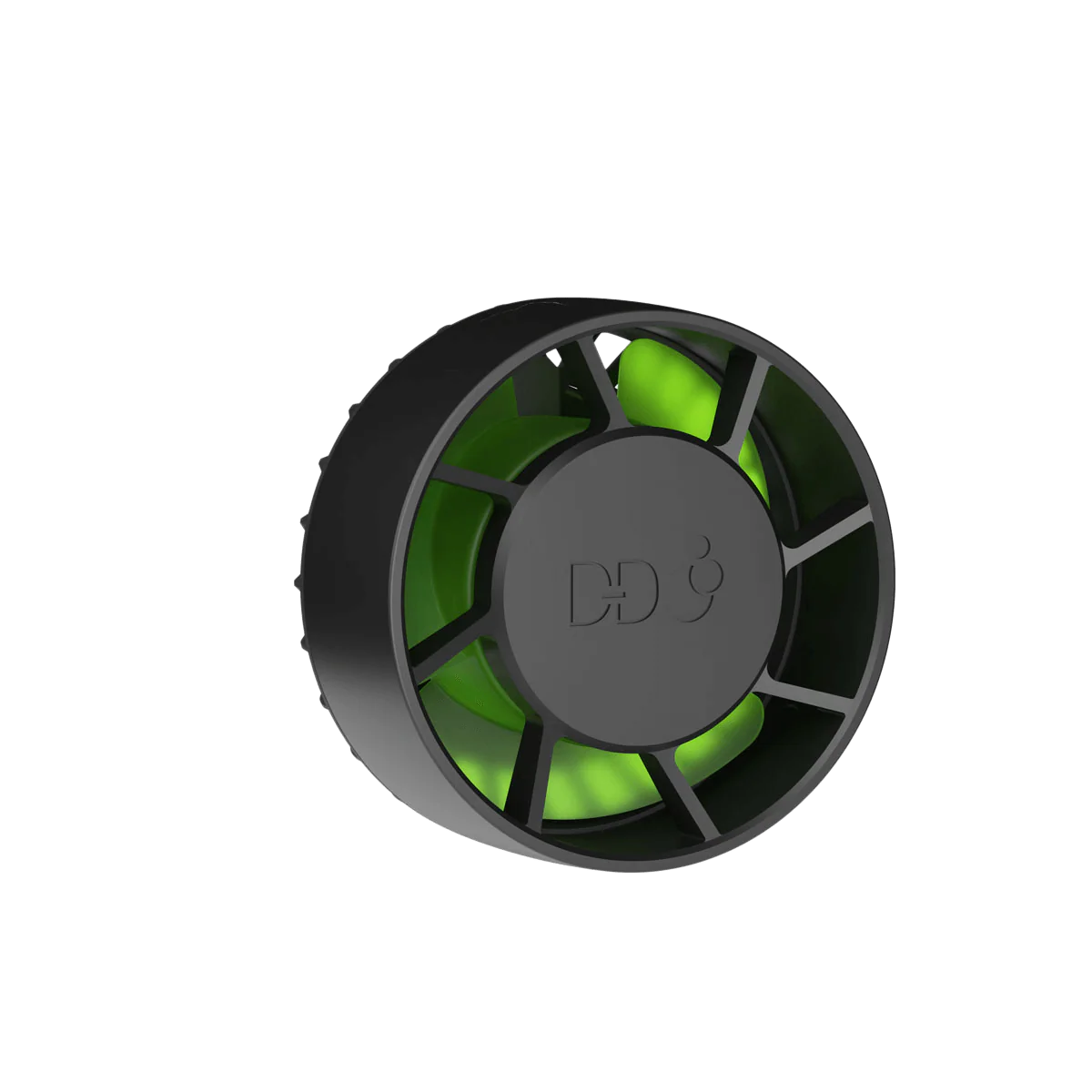

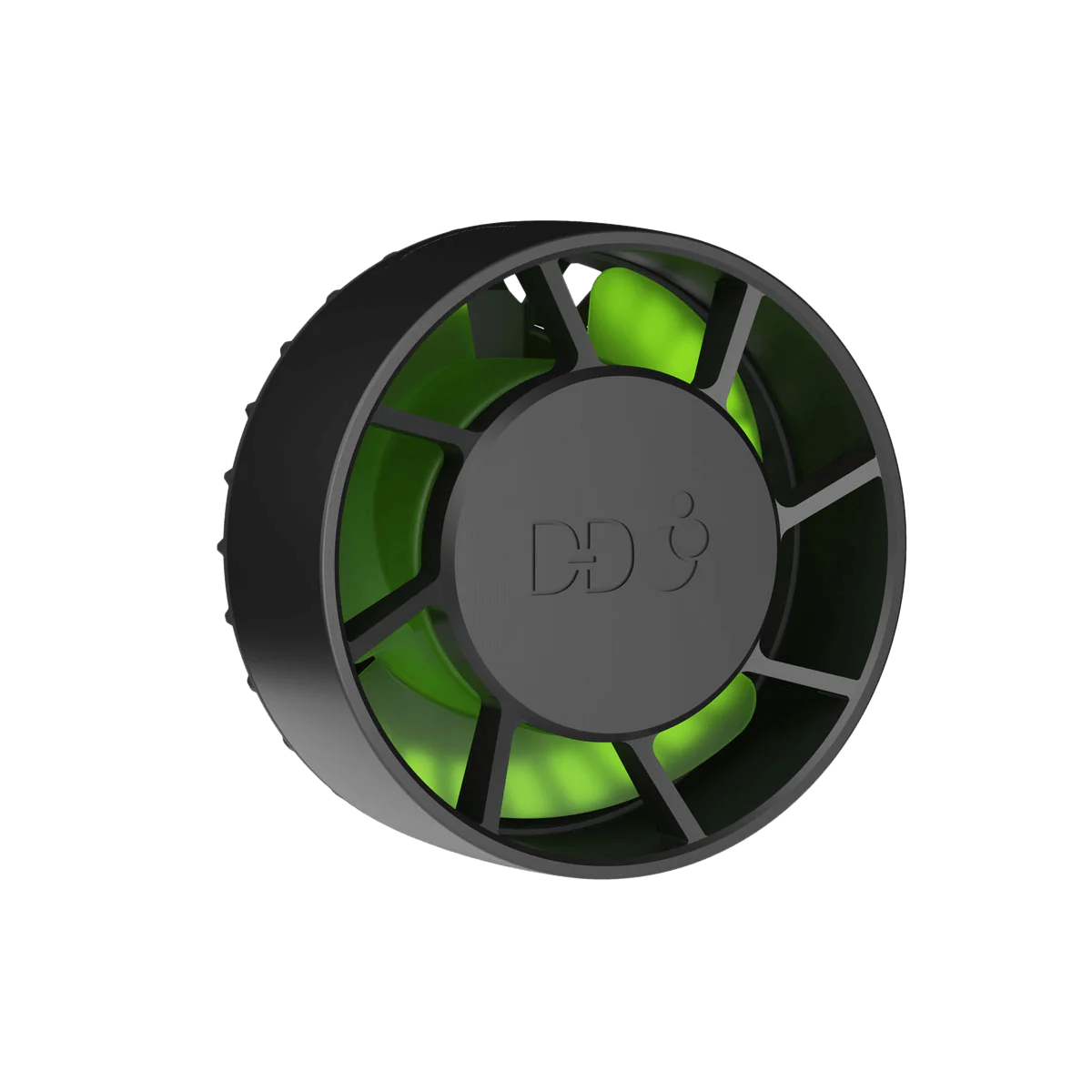

D-D Funktion Wave Pumps

The D-D Funktion Wave Pumps deliver powerful, controllable water movement in a compact, unobtrusive form. Engineered for saltwater, reef, freshwater, and aquascape systems, these high-performance wavemakers use a low-voltage, energy-efficient motor paired with ceramic bearings for ultra-quiet operation and long-term reliability. With a digital multi-mode controller, waterproof magnetic mount, and optional fish/anemone guard, Funktion Wave Pumps offer versatile, reef-safe flow with exceptional ease of use and installation.



Key Benefits

• Broad, even flow output from a compact puck-style design

• Multiple wave modes for reef, lagoon, fish-only, and planted aquariums

• Quiet, cool-running motor with ceramic bearings

• Strong waterproof magnetic mounting with angle adjustment

• Optional guard included for protecting small fish and invertebrates



Core Features

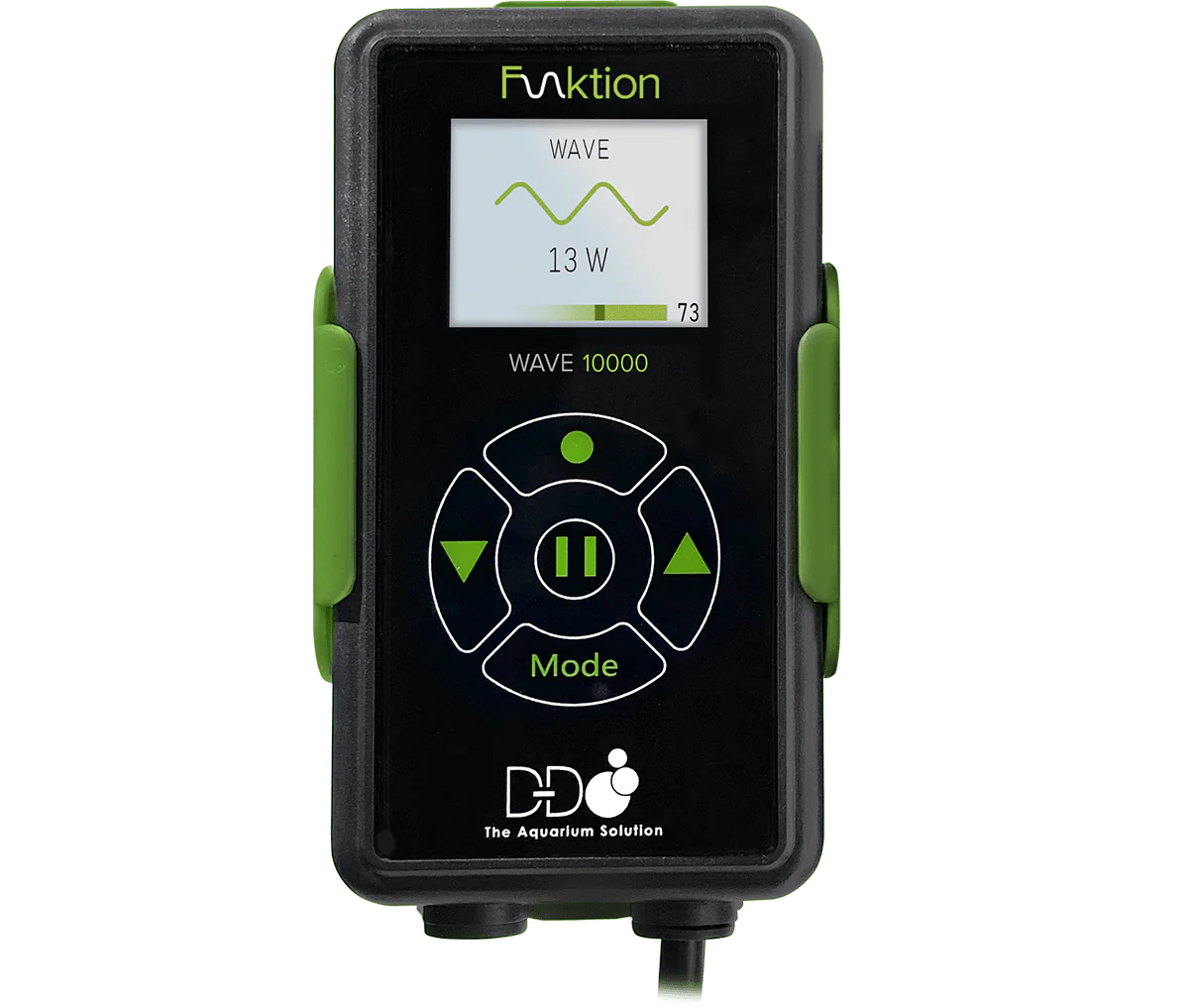

• Advanced Digital Controller:
  Four flow modes — Pump, Wave, Pulse, and Storm — each fully adjustable for power, frequency, and behaviour.

• Energy-Efficient Motor:
  Low-voltage 4-pole motor with reduced heat and minimal running noise.

• Flexible Mounting:
  Waterproof magnet mount with soft vibration-damping jacket; easy to reposition at any angle.

• Optional Fish Guard:
  Included with every pump for added safety around small fish and anemones.

• Smart Protection:
  Run-dry detection with automatic shutdown plus feed mode.

• Durability Built In:
  Wear-resistant ceramic shaft for long service life.

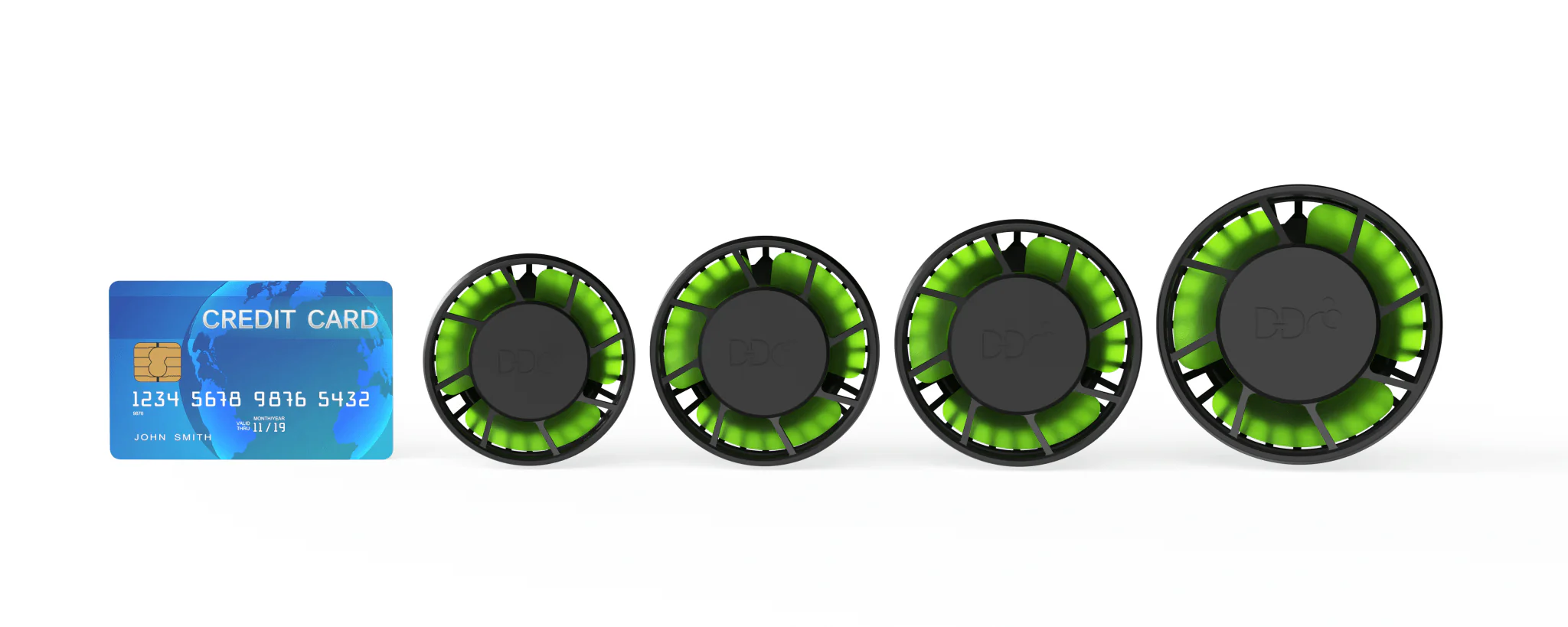

Technical Specifications

FPW3000

• Power Input: 12 V

• Max Wattage: 7.5 W

• Max Flow Rate: 3000 L/h

• Dimensions: Ø57 × 48 mm

• Max Glass Thickness: 10 mm

• Cable Length: 3 m

FPW4000

• Power Input: 24 V

• Max Wattage: 10 W

• Max Flow Rate: 4000 L/h

• Dimensions: Ø64 × 52 mm

• Max Glass Thickness: 10 mm

• Cable Length: 3 m

FPW10000

• Power Input: 24 V

• Max Wattage: 20 W

• Max Flow Rate: 10,000 L/h

• Dimensions: Ø76 × 55 mm

• Max Glass Thickness: 15 mm

• Cable Length: 3 m

FPW13000

• Power Input: 24 V

• Max Wattage: 30 W

• Max Flow Rate: 13,000 L/h

• Dimensions: Ø82 × 63 mm

• Max Glass Thickness: 19 mm

• Cable Length: 3 m



Who Is This Pump For?

• Reef keepers needing customisable, quiet wave patterns

• Planted tank aquascapers seeking gentle, even flow

• Marine hobbyists running SPS, LPS, or soft coral systems

• Fish-only systems needing strong circulation with minimal noise

• Anyone wanting a compact, powerful, controllable wavemaker
