Evolution Aqua EvoUV 15w - 110w

Evolution Aqua EvoUV 15w - 110w

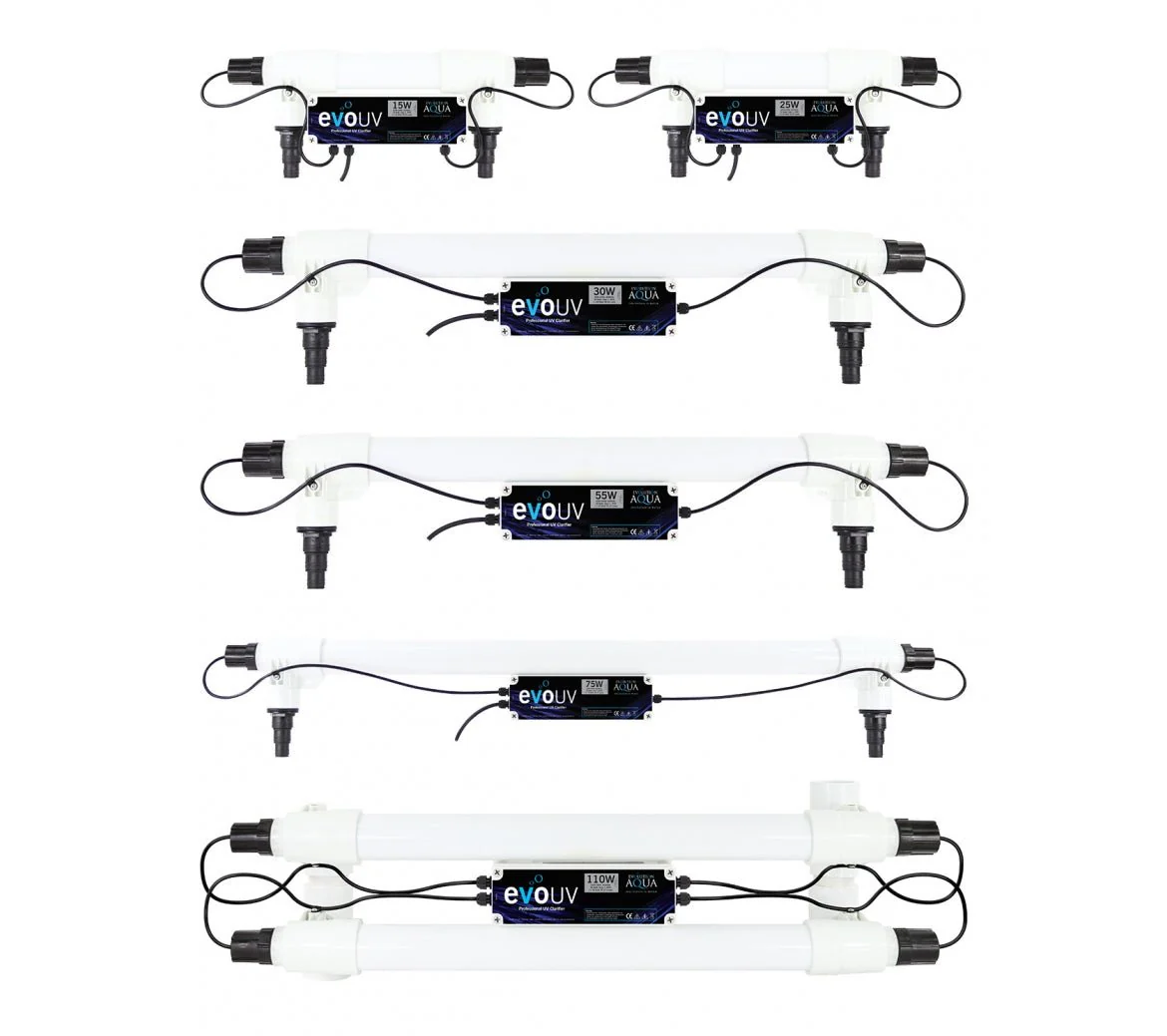

Evolution Aqua’s pond UV clarifiers have been completely re-designed for 2021, to deliver even greater performance and improved serviceability. The range of six evoUV pond clarifiers are made using the very latest technology and design techniques, ensuring there is even water flow through the unit, and optimum ultraviolet light penetration.

One new feature is the ease of the serviceability of the evoUV. Changing bulbs, quartz sleeves or replacing a ballast are quick and simple to do.

The evoUV is simple to install, with universal mounting plates allowing you to fix the unit horizontally or vertically, or at any angle you choose.



Dimensions

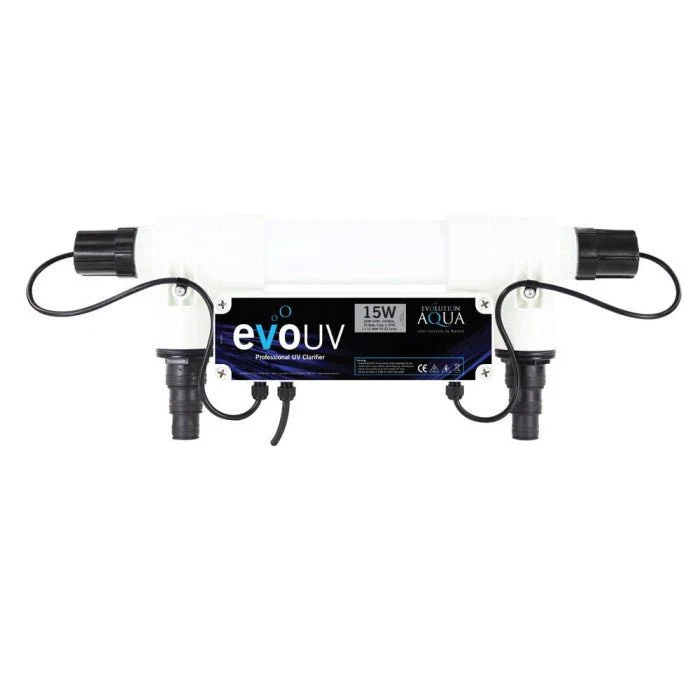

evo15 and evo25

The overall dimensions of evo15 and evo25 are identical. They are 540mm (l) x 116mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 319mm. The evo15 uses a standard length 15W T8 UV bulb and the evo25 uses a standard 25W T8 UV bulb.

evo15 and evo25 Dimensions

evo30 and evo55

The overall dimensions of evo30 and evo55 are identical. They are 990mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo30 uses a standard length 30W T8 UV bulb and the evo55 uses a standard 55W T8 UV bulb.

evo30 and evo55 Dimensions

evo75

The overall dimensions of evo75 are 1293mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 1071.5mm. The evo75 uses a standard length 75W T8 UV bulb.

evo75 Dimensions

evo110

The overall dimensions of evo110 are 990mm (l) x 195mm (w) x 280mm (h). The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo110 uses two standard length 55W T8 UV bulbs.

evo110 Dimensions
Select Size
From $51.24

Original: $170.79

-70%
Evolution Aqua EvoUV 15w - 110w—

$170.79

$51.24

Product Information

Shipping & Returns

Description

Evolution Aqua’s pond UV clarifiers have been completely re-designed for 2021, to deliver even greater performance and improved serviceability. The range of six evoUV pond clarifiers are made using the very latest technology and design techniques, ensuring there is even water flow through the unit, and optimum ultraviolet light penetration.

One new feature is the ease of the serviceability of the evoUV. Changing bulbs, quartz sleeves or replacing a ballast are quick and simple to do.

The evoUV is simple to install, with universal mounting plates allowing you to fix the unit horizontally or vertically, or at any angle you choose.



Dimensions

evo15 and evo25

The overall dimensions of evo15 and evo25 are identical. They are 540mm (l) x 116mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 319mm. The evo15 uses a standard length 15W T8 UV bulb and the evo25 uses a standard 25W T8 UV bulb.

evo15 and evo25 Dimensions

evo30 and evo55

The overall dimensions of evo30 and evo55 are identical. They are 990mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo30 uses a standard length 30W T8 UV bulb and the evo55 uses a standard 55W T8 UV bulb.

evo30 and evo55 Dimensions

evo75

The overall dimensions of evo75 are 1293mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 1071.5mm. The evo75 uses a standard length 75W T8 UV bulb.

evo75 Dimensions

evo110

The overall dimensions of evo110 are 990mm (l) x 195mm (w) x 280mm (h). The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo110 uses two standard length 55W T8 UV bulbs.

evo110 Dimensions
