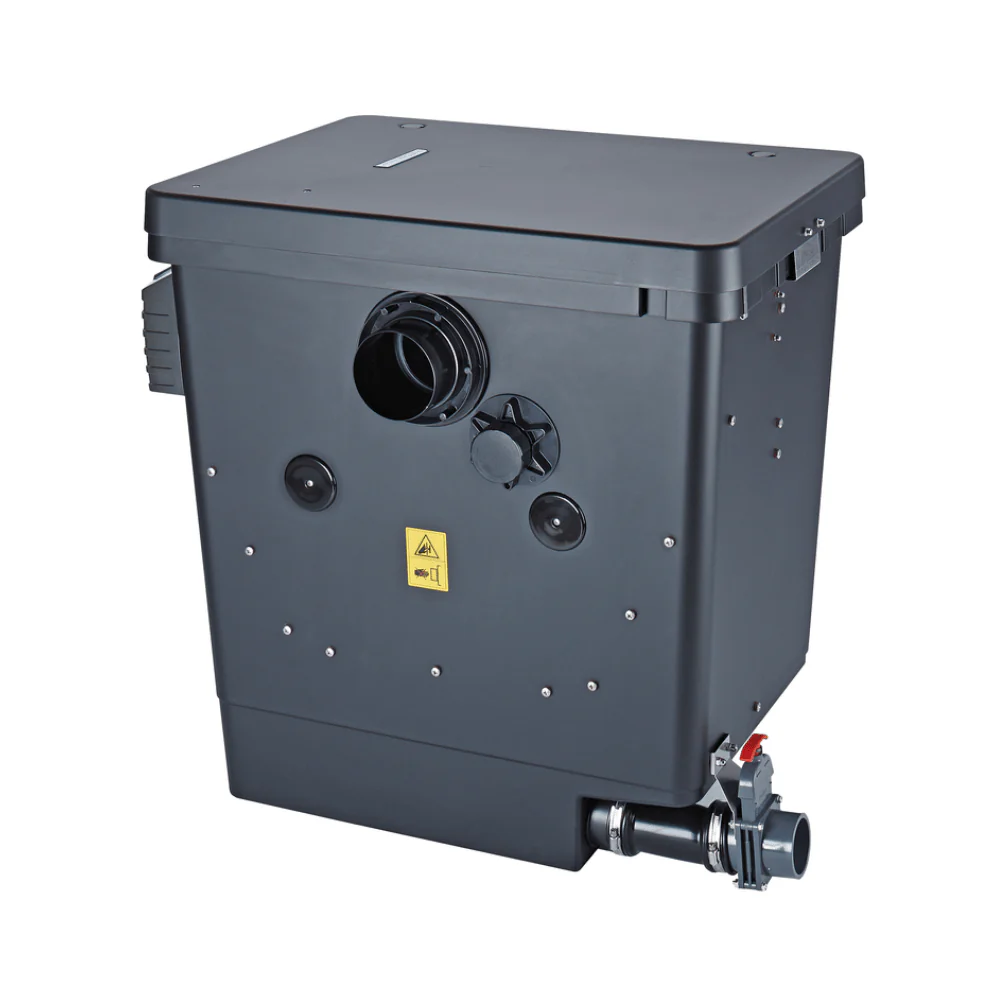

Oase ProfiClear Premium pumped EGC
- Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
- Inexpensive alternative for smaller ponds, particularly koi ponds
- The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology
- Available in the pump-fed principle and in the gravity-fed principle
- Conveniently control all settings via an app, through via the Easy Garden Control System (EGC)
- With the Moving Bed System for optimal water movement and water cleaning
- High separating capacity through deep-bed filtration of up to 60 microns
- Hel-X 13 filter medium with significantly enlarged surface area for effective decomposition of nutrients and pollutants
- The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required
- Innovative and reliable product »made in Germany« (except pressure pump)
- Particularly quiet operation thanks to extensive noise insulation
- Individually removable sieve elements (no tools required) and free-wheel function
- Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
- Minimal install height for full flexibility with gravity-fed systems
Compact M
Dimensions (L x W x H) mm 885 x 685 x 820 Rated voltage 230 V / 50 Hz Power consumption W 5 Power consumption, cleaning W 870 Cable length m 5.00 + 1.00 Net weight kg 76.50 Guarantee (+ request guarantee) Years 2 + 1 Biological filter surface m² 38.2 Biological filter surface protected m² 32.2 Control unit Microcontroller Temperature display Digital Coarse debris extraction µm 80 Number of nozzles/rinse quantity 2 x 3.5 l/min Scavenging pump 4 bar Automatic rinsing system manually, Sensor, Time interval Number of sieve elements Units 6 Filter intake surface cm² 1135 Material GRP Duroplast/stainless steel Inlet connections mm 50 Inlet connections 1 x 2" + Bitron Number of outlets Units 1 Outlet connections DN 110 Sludge discharge connections DN 75, DN 110 Flush trough connection DN 110 Connection to AquaOxy 2000, Bitron C 72 - 110 W, Bitron Eco 120 - 240 W Min. flow rate l/h 7500 Max. flow rate l/h 12500 Installation height above water level cm 32.0 Type of use Pump fed system Other Aeration pre-installed
incl. 40l Hel-X 13 Biomedia
Pollutant discharge incl. slide valve
Compact L
Dimensions (L x W x H) mm 1334 x 891 x 815 Rated voltage 230 V / 50 Hz Power consumption W 5 Power consumption, cleaning W 1050 Cable length m 5.00 + 1.00 Net weight kg 133.00 Guarantee (+ request guarantee) Years 2 + 1 Biological filter surface m² 57.3 Biological filter surface protected m² 48.4 Control unit Microcontroller Temperature display Digital Coarse debris extraction µm 60 Number of nozzles/rinse quantity 4 x 2.5 l/min Scavenging pump 6 bar Automatic rinsing system manually, Sensor, Time interval Material GRP Duroplast/stainless steel Number of inlets Units 2 Inlet connections mm 50 Inlet connections 1 x 2" + Bitron Number of outlets Units 2 Outlet connections DN 110 Sludge discharge connections DN 75, DN 110 Flush trough connection DN 110 Connection to AquaOxy 2000, Bitron C 72 - 110 W, Bitron Eco 120 - 240 W Min. flow rate l/h 10000 Max. flow rate l/h 20000 Installation height above water level cm 37.0 Type of use Pump fed system Other Aeration pre-installed
incl. 60l Hel-X 13 Biomedia
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Oase ProfiClear Premium pumped EGC
Oase ProfiClear Premium pumped EGC
- Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
- Inexpensive alternative for smaller ponds, particularly koi ponds
- The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology
- Available in the pump-fed principle and in the gravity-fed principle
- Conveniently control all settings via an app, through via the Easy Garden Control System (EGC)
- With the Moving Bed System for optimal water movement and water cleaning
- High separating capacity through deep-bed filtration of up to 60 microns
- Hel-X 13 filter medium with significantly enlarged surface area for effective decomposition of nutrients and pollutants
- The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required
- Innovative and reliable product »made in Germany« (except pressure pump)
- Particularly quiet operation thanks to extensive noise insulation
- Individually removable sieve elements (no tools required) and free-wheel function
- Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
- Minimal install height for full flexibility with gravity-fed systems
Compact M
Dimensions (L x W x H) mm 885 x 685 x 820 Rated voltage 230 V / 50 Hz Power consumption W 5 Power consumption, cleaning W 870 Cable length m 5.00 + 1.00 Net weight kg 76.50 Guarantee (+ request guarantee) Years 2 + 1 Biological filter surface m² 38.2 Biological filter surface protected m² 32.2 Control unit Microcontroller Temperature display Digital Coarse debris extraction µm 80 Number of nozzles/rinse quantity 2 x 3.5 l/min Scavenging pump 4 bar Automatic rinsing system manually, Sensor, Time interval Number of sieve elements Units 6 Filter intake surface cm² 1135 Material GRP Duroplast/stainless steel Inlet connections mm 50 Inlet connections 1 x 2" + Bitron Number of outlets Units 1 Outlet connections DN 110 Sludge discharge connections DN 75, DN 110 Flush trough connection DN 110 Connection to AquaOxy 2000, Bitron C 72 - 110 W, Bitron Eco 120 - 240 W Min. flow rate l/h 7500 Max. flow rate l/h 12500 Installation height above water level cm 32.0 Type of use Pump fed system Other Aeration pre-installed
incl. 40l Hel-X 13 Biomedia
Pollutant discharge incl. slide valve
Compact L
Dimensions (L x W x H) mm 1334 x 891 x 815 Rated voltage 230 V / 50 Hz Power consumption W 5 Power consumption, cleaning W 1050 Cable length m 5.00 + 1.00 Net weight kg 133.00 Guarantee (+ request guarantee) Years 2 + 1 Biological filter surface m² 57.3 Biological filter surface protected m² 48.4 Control unit Microcontroller Temperature display Digital Coarse debris extraction µm 60 Number of nozzles/rinse quantity 4 x 2.5 l/min Scavenging pump 6 bar Automatic rinsing system manually, Sensor, Time interval Material GRP Duroplast/stainless steel Number of inlets Units 2 Inlet connections mm 50 Inlet connections 1 x 2" + Bitron Number of outlets Units 2 Outlet connections DN 110 Sludge discharge connections DN 75, DN 110 Flush trough connection DN 110 Connection to AquaOxy 2000, Bitron C 72 - 110 W, Bitron Eco 120 - 240 W Min. flow rate l/h 10000 Max. flow rate l/h 20000 Installation height above water level cm 37.0 Type of use Pump fed system Other Aeration pre-installed
incl. 60l Hel-X 13 Biomedia
Select Size
From $1,201.36
Original: $4,004.52
-70%Oase ProfiClear Premium pumped EGC—
$4,004.52
$1,201.36Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
- Inexpensive alternative for smaller ponds, particularly koi ponds
- The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology
- Available in the pump-fed principle and in the gravity-fed principle
- Conveniently control all settings via an app, through via the Easy Garden Control System (EGC)
- With the Moving Bed System for optimal water movement and water cleaning
- High separating capacity through deep-bed filtration of up to 60 microns
- Hel-X 13 filter medium with significantly enlarged surface area for effective decomposition of nutrients and pollutants
- The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required
- Innovative and reliable product »made in Germany« (except pressure pump)
- Particularly quiet operation thanks to extensive noise insulation
- Individually removable sieve elements (no tools required) and free-wheel function
- Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
- Minimal install height for full flexibility with gravity-fed systems
Compact M
Dimensions (L x W x H) mm 885 x 685 x 820 Rated voltage 230 V / 50 Hz Power consumption W 5 Power consumption, cleaning W 870 Cable length m 5.00 + 1.00 Net weight kg 76.50 Guarantee (+ request guarantee) Years 2 + 1 Biological filter surface m² 38.2 Biological filter surface protected m² 32.2 Control unit Microcontroller Temperature display Digital Coarse debris extraction µm 80 Number of nozzles/rinse quantity 2 x 3.5 l/min Scavenging pump 4 bar Automatic rinsing system manually, Sensor, Time interval Number of sieve elements Units 6 Filter intake surface cm² 1135 Material GRP Duroplast/stainless steel Inlet connections mm 50 Inlet connections 1 x 2" + Bitron Number of outlets Units 1 Outlet connections DN 110 Sludge discharge connections DN 75, DN 110 Flush trough connection DN 110 Connection to AquaOxy 2000, Bitron C 72 - 110 W, Bitron Eco 120 - 240 W Min. flow rate l/h 7500 Max. flow rate l/h 12500 Installation height above water level cm 32.0 Type of use Pump fed system Other Aeration pre-installed
incl. 40l Hel-X 13 Biomedia
Pollutant discharge incl. slide valve
Compact L
Dimensions (L x W x H) mm 1334 x 891 x 815 Rated voltage 230 V / 50 Hz Power consumption W 5 Power consumption, cleaning W 1050 Cable length m 5.00 + 1.00 Net weight kg 133.00 Guarantee (+ request guarantee) Years 2 + 1 Biological filter surface m² 57.3 Biological filter surface protected m² 48.4 Control unit Microcontroller Temperature display Digital Coarse debris extraction µm 60 Number of nozzles/rinse quantity 4 x 2.5 l/min Scavenging pump 6 bar Automatic rinsing system manually, Sensor, Time interval Material GRP Duroplast/stainless steel Number of inlets Units 2 Inlet connections mm 50 Inlet connections 1 x 2" + Bitron Number of outlets Units 2 Outlet connections DN 110 Sludge discharge connections DN 75, DN 110 Flush trough connection DN 110 Connection to AquaOxy 2000, Bitron C 72 - 110 W, Bitron Eco 120 - 240 W Min. flow rate l/h 10000 Max. flow rate l/h 20000 Installation height above water level cm 37.0 Type of use Pump fed system Other Aeration pre-installed
incl. 60l Hel-X 13 Biomedia
