Red Sea Cabinet Slide-Out Mounting Panel

A premium, space-optimising solution designed to mount and organise your aquarium controllers, dosers and accessories. The Red Sea Cabinet Slide-Out Control Panel system allows you to reclaim cabinet space and gain effortless access to equipment with smooth, soft-close motion and durable marine-grade construction. Now available in two panel sizes and an optional wire basket designed specifically for the 60 model.



Key Benefits

• Maximises cabinet organisation and accessibility

• Creates a clean, professional equipment layout

• Smooth slide-out access with soft-close hardware

• Marine-grade materials built to withstand humid environments

• Compatible with a wide range of Red Sea aquarium systems

• Optional wire basket expands storage on the 60 variant



Core Features

• Marine-Spec Build: 2cm thick black laminated plywood engineered for high moisture resistance

• Universal Mounting: Fits left or right cabinet sides for flexible setup

• Soft-Close Stainless Steel Sliders: Quick-release mechanism for easy installation and removal

• Clearance for Hinges: Mounting brackets provide 3cm space to ensure smooth operation

• Expandable System: Optional wire basket adds further organisation to the 60 panel



Technical Specifications

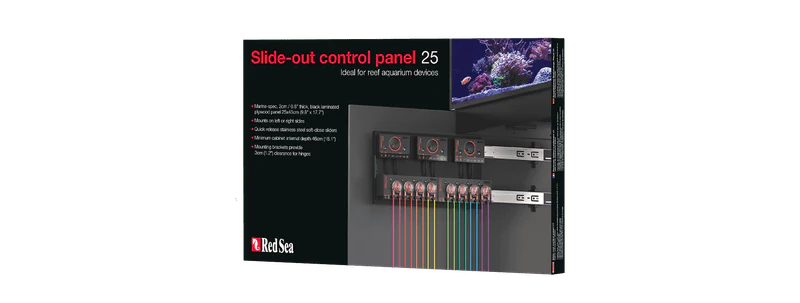

Control Panel 25

• Dimensions: 25 × 45cm

• Thickness: 2cm

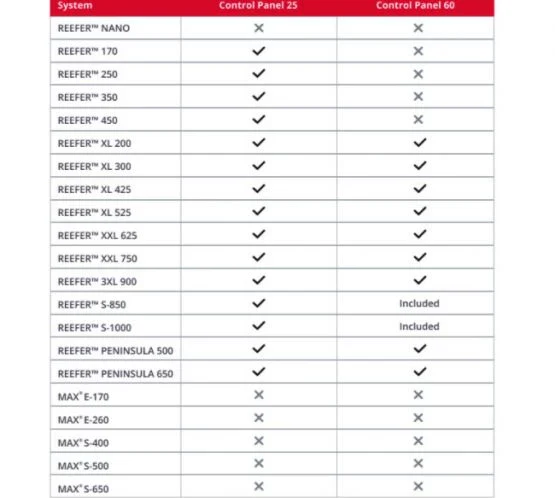

• Fitment: All REEFER models except REEFER NANO

• Minimum cabinet internal width required: 46cm

• Material: Marine-spec laminated plywood

• Sliders: Stainless steel, soft-close, quick-release



Control Panel 60

• Dimensions: 60 × 50cm

• Thickness: 2cm

• Fitment: REEFER XL models and above

• Minimum cabinet internal width required: 46cm

• Material: Marine-spec laminated plywood

• Sliders: Stainless steel, soft-close, quick-release

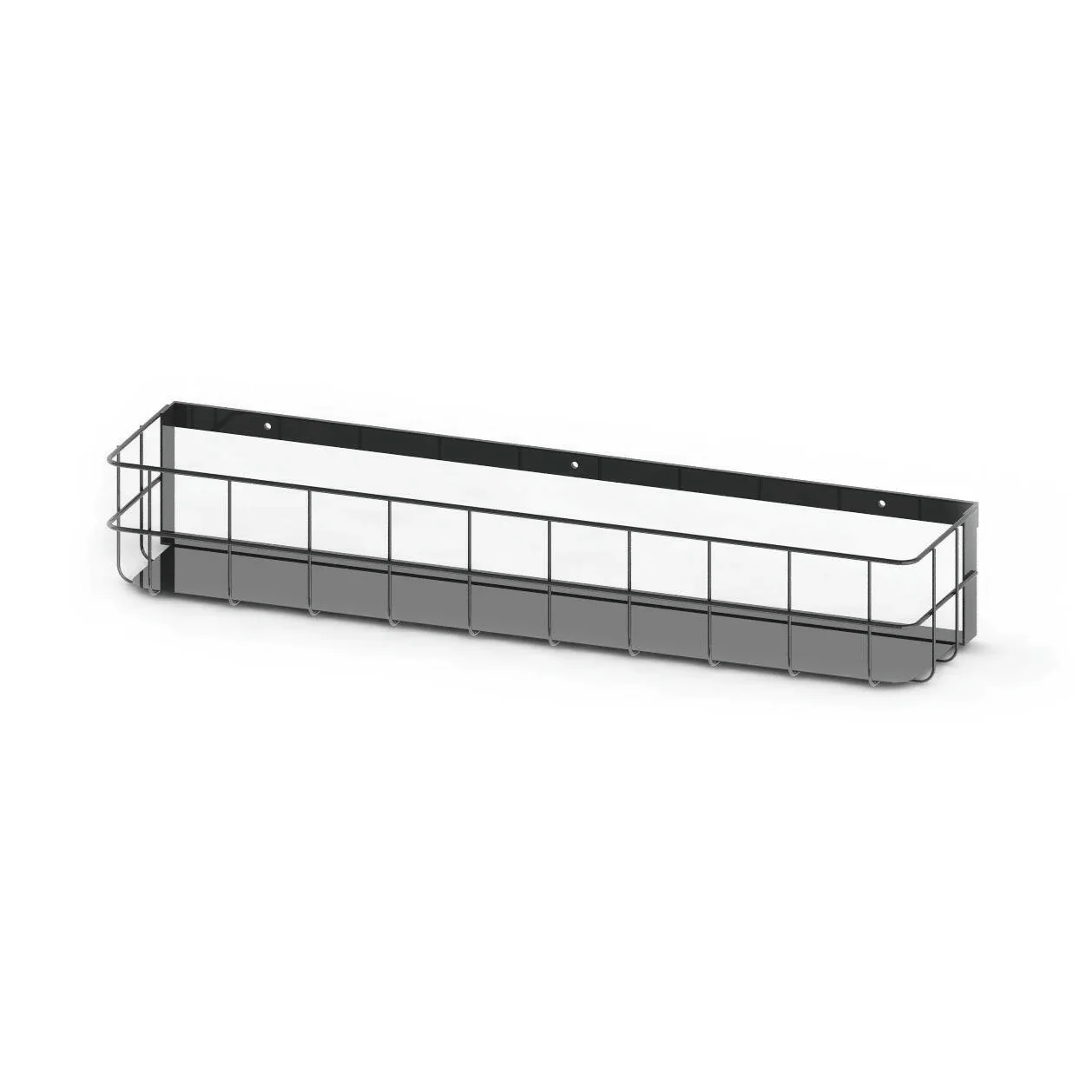

Wire Basket for Control Panel 60

• Compatible with: Control Panel 60 only

• Purpose: Additional storage for dosing bottles, controller power bricks, small accessories

• Mounting: Attaches directly to the slide-out panel

• Construction: Powder-coated metal basket designed for marine-cabinet use



Who Is This Product For?

• Reefkeepers wanting a clean, organised equipment setup

• Users of Red Sea REEFER systems seeking better cabinet accessibility

• Aquarists installing multiple controllers, dosers or accessories

• Anyone upgrading to a professional-grade cabinet management system
